Flexible Power. Existing Infrastructure. Maximum Output.

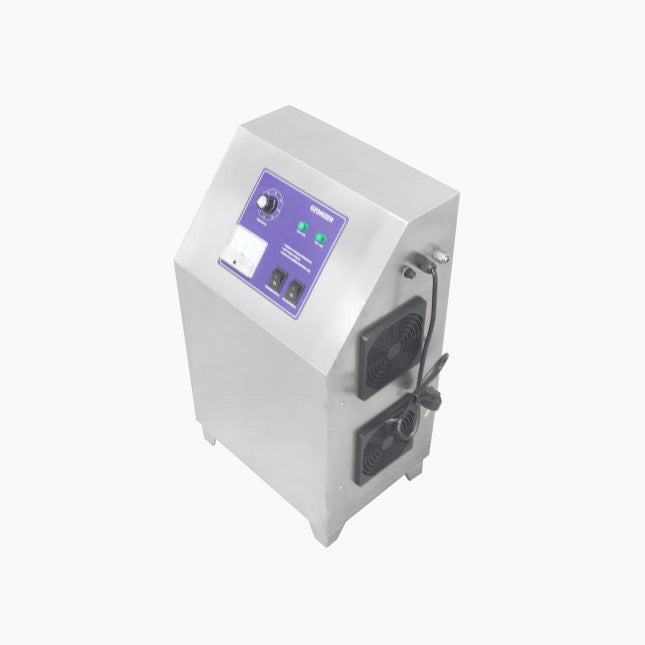

Introducing the Redox-V (Variable) range—the ozone generator designed to adapt to your facility, not the other way around.
Whether you are running a standard air compressor setup or a high-efficiency oxygen concentrator, the Redox-V integrates seamlessly with your existing gas preparation infrastructure. By removing the internal air dryer and oxygen concentrator, we have created a streamlined, robust unit that focuses entirely on efficient ozone generation.
Why Choose Redox-V?
Variable Gas Source: True to its name, the Redox-V is engineered to operate on either Air or Oxygen feeds. This gives you the flexibility to start with air and upgrade to oxygen later for higher output without changing your generator.
BYO Infrastructure: Don't pay for hardware you already own. Because the Redox-V does not include internal air prep or concentrators, it is the perfect cost-effective choice for facilities with established air filtration or oxygen systems.
High-Pressure Capability: Engineered to handle demanding applications, the Redox-V supports outlet pressures up to 30 psi, making it ideal for pressurized injection cones and deep-water applications.
Added Protection: While designed for pre-prepped gas, every unit includes an integrated moisture filter as a final safety barrier to protect the corona discharge cells from unexpected humidity.
Technical Specifications & Output Performance
Select the model that fits your flow rates and target concentration. The table below details the ozone production based on your feed gas source.
Model Code
Output Range
Performance on AIR Feed
Performance on OXYGEN Feed
REDOX V.1
2.5g – 4.5g/hr
2.5g/hr @ 10 LPM Air
4.5g/hr @ 2 LPM O2 (2g/hr @ 0.5 LPM O2)
REDOX V.2
3.5g – 5g/hr
3.5g/hr @ 15 LPM Air
5g/hr @ 2 LPM O2 (2.2g/hr @ 0.5 LPM O2)
REDOX V.3
6g – 10.5g/hr
6g/hr @ 20 LPM Air
10.5g/hr @ 3 LPM O2 (2.5g/hr @ 0.5 LPM O2)
REDOX V.4
7g – 15g/hr
7g/hr @ 20 LPM Air
15g/hr @ 5 LPM O2 (2.5g/hr @ 0.5 LPM O2)
REDOX V.5
11g – 20g/hr
11g/hr @ 40 LPM Air
20g/hr @ 5 LPM O2 (5.5g/hr @ 1 LPM O2)
REDOX V.6
15g – 30g/hr
15g/hr @ 40 LPM Air
30g/hr @ 6 LPM O2 (6g/hr @ 1 LPM O2)
REDOX V.7
20g – 50g/hr
20g/hr @ 50 LPM Air
50g/hr @ 10 LPM O2 (6g/hr @ 1 LPM O2)
Installation Requirements
Feed Gas: Clean, dry air OR Oxygen (purity >90% recommended for max output).
Air Preparation: External air drying/preparation is required to ensure long cell life.
Cooling: Ambient air cooling (ensure adequate ventilation around the unit).
Need help sizing your system?
Choosing the right ozone generator depends on your total water volume, bio-load, and contact time. If you aren't sure which Redox-V model suits your RAS or treatment plant, contact us for a technical consultation.
