Nanobubble Technology

NBN NOZZLE RANGE

From 2 to 120 m³/hr — nanobubble nozzles sized to your oxygen demand and gas transfer requirements. 11 models to fit any system.

✓ PUMP & GAS Simple Integration
PVC Base Construction
O₃ Ozone Compatible
11 SIZES Scalable Design

💡 Nanobubbles are resistant to degassing — they build longer-lasting oxygen reserves, improve oxidation, and control biofilms

The BTA Approach

NOT ANOTHER GENERATOR.
JUST THE NOZZLE.

Most "nanobubble generators" on the market are just a nozzle hidden inside an expensive, inflexible box packed with built-in compressors and gauges. But let's face it: it’s the bubble you want, not the box it comes out of.

Because the nozzle does all the work, buying an entire enclosed system is often a price-prohibitive waste of capital. 90% of facilities already have a pump and a central gas supply on-site (and if you don't, we can size standard industrial equipment for a fraction of the cost). Our NBN range provides the core technology, allowing you to minimise your CapEx and maximise your effectiveness without paying for redundant componentry.

Why Nanobubbles?

TINY BUBBLES. BIG RESULTS.

Nanobubbles are tiny, stable gas bubbles that do extraordinary things for aquaculture systems. No expensive hardware — just add a pump, gas supply, and your existing pipework.

💨

Resistant to Degassing

Build longer-lasting oxygen reserves in water. Nanobubbles remain suspended far longer than conventional bubbles.

🛡️

Additional Biosecurity

Helps eliminate harmful bacteria and viruses for healthier stock and cleaner water.

⚡

Increased Oxidation

Breaks down waste and organics more effectively than conventional aeration methods.

💰

Reduced Gas Use

Lower oxygen and ozone consumption is a typical outcome of nanobubble application.

🌱

Controls Biofilms

Reduces buildup in pipes and tanks, improving water quality and system efficiency.

🌀

Improved Mixing

Brownian motion ensures better dispersion, especially in deeper areas of your system.

⚙️

Simple Integration

Works with your setup. Just add a pump, oxygen supply, and standard pipes.

💳

Cost Effective

Low upfront investment. Our nozzles work efficiently with equipment you already have.

Specifications

NBN NOZZLE RANGE

Choose the right model for your system volume and gas transfer requirements.

Nanobubble Concentration Data

Circulation Times (mins) Mean Bubble Size Concentration (Bubbles/ml)
5 mins 151 nm 5,800,000
10 mins 146 nm 10,900,000
40 mins 193 nm 42,000,000

Baseline concentration test measurements. Actual concentrations in active aquaculture environments will vary based on organic load, salinity, and temperature.

Sizing & Flow Rates

Model Flow Rate Inlet / Outlet Head Pressure O₃ GTR O₂ GTR Natural Air (21% O₂)
NBN02 2 m³/h 25mm 6–8m + depth + friction 18–54 L/h 16–48 g/h 13–15 g/h (SW) · 10–12 g/h (FW)
NBN06 6 m³/h 32mm 6–8m + depth + friction 54–162 L/h 48–144 g/h 39–45 g/h (SW) · 30–36 g/h (FW)
NBN09 9 m³/h 32mm 10–12m + depth + friction 80–240 L/h 70–210 g/h 65–75 g/h (SW) · 50–60 g/h (FW)
NBN20 20 m³/h 40mm 10–12m + depth + friction 160–480 L/h 140–520 g/h 100–120 g/h (SW) · 70–90 g/h (FW)
NBN30 30 m³/h 50mm 10–12m + depth + friction 240–720 L/h 210–630 g/h 170–200 g/h (SW) · 120–140 g/h (FW)
NBN40 40 m³/h 80mm × 50mm 10–12m + depth + friction 360–1,080 L/h 320–960 g/h 225–270 g/h (SW) · 160–190 g/h (FW)
NBN50 50 m³/h 80mm 10–12m + depth + friction 450–1,350 L/h 400–1,200 g/h 290–310 g/h (SW) · 190–210 g/h (FW)
NBN60S 60 m³/h 80mm × 65mm 10–12m + depth + friction 540–1,620 L/h 480–1,440 g/h 350–480 g/h (SW) · 230–350 g/h (FW)
NBN80S 80 m³/h 100mm × 80mm 10–12m + depth + friction 700–2,000 L/h 600–1,900 g/h 440–500 g/h (SW) · 300–380 g/h (FW)
NBN100S 100 m³/h 100mm × 80mm 10–12m + depth + friction 900–2,600 L/h 800–2,400 g/h 580–620 g/h (SW) · 380–420 g/h (FW)
NBN120S 120 m³/h 100mm × 80mm 10–12m + depth + friction 1,000–3,200 L/h 960–2,880 g/h 700–960 g/h (SW) · 460–700 g/h (FW)

SW = Saltwater · FW = Freshwater · Head pressure includes pump head + water depth + friction loss. O₃ GTR assumes 3–9 L/h ozone gas feed per m³/h water flow.

Inclusions & Build

EVERYTHING YOU NEED

Every NBN model arrives ready for integration. Base models are PVC; specialised materials available.

📦

In the Box

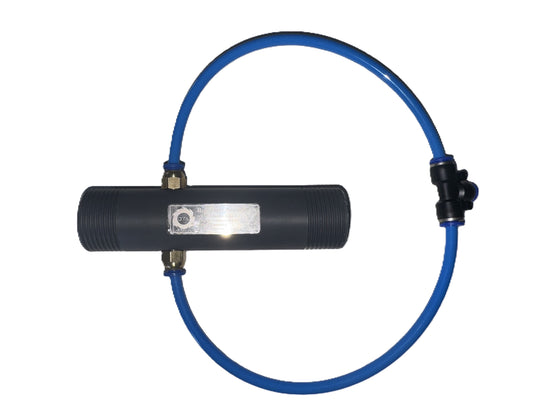

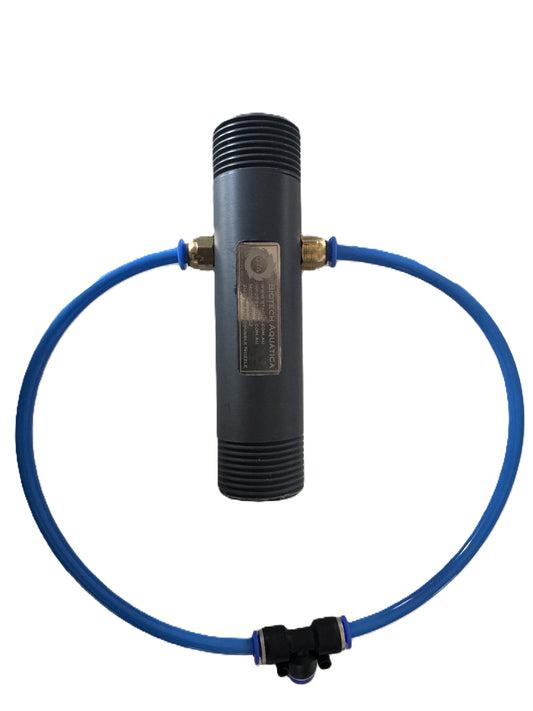

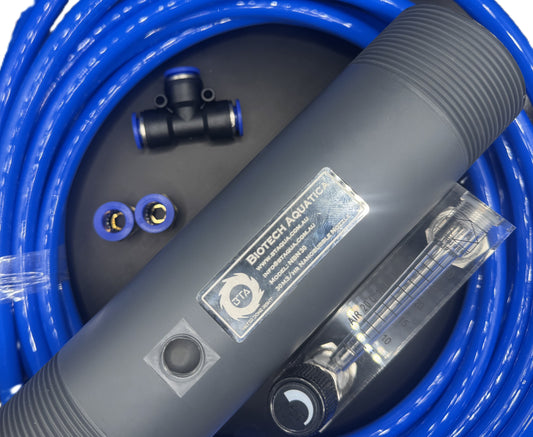

NBN nozzle unit (PVC base), 5m polyurethane hose, SS gas fittings, and inline flow meter.

⚙️

PTFE (Material Upgrade)

Highly chemical-resistant. The premium choice for ozone integration and aggressive environments.

⚖️

SS316 (Material Upgrade)

Durability in harsh environments. Premium marine-grade stainless for maximum corrosion resistance.

FAQ

COMMON QUESTIONS

What do I need to run a nanobubble nozzle?

Just a pump, a gas supply, and standard pipework. We supply the nozzle, hose, fittings, and flow meter with every order.

Which model should I choose?

Match the nozzle flow rate to your system circulation rate. Contact Biotech Aquatica with your system volume and pump details for sizing.

Can I use these with ozone?

Yes — all NBN models are ozone compatible. For continuous ozone use, we recommend upgrading to PTFE fittings.

What is the lead time for special orders?

Standard PVC models take 2–4 weeks. Custom material options (PTFE, stainless) may take longer.

NEED HELP SIZING YOUR SYSTEM?

Contact Biotech Aquatica with your system volume, pump details, and oxygen demand — we'll recommend the right NBN model.
