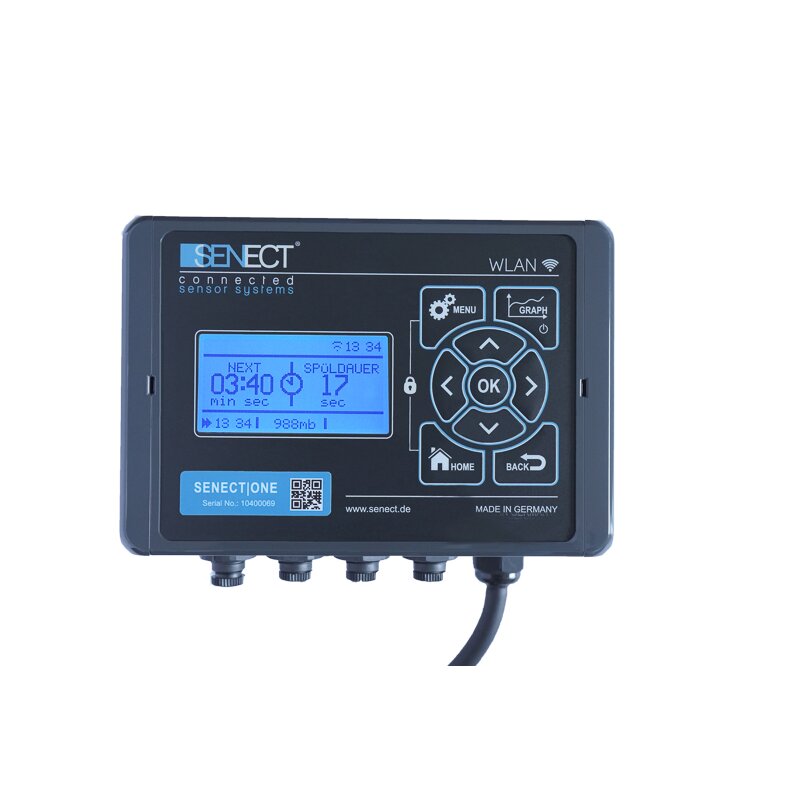

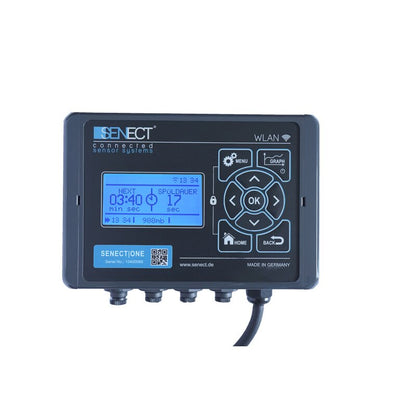

SENECT ONE Controller – Versatile Single-Parameter Monitor with Multiple Probes
SENECT GmbH & Co. KG · Germany
SENECT ONE CONTROLLER
A highly versatile, single-parameter monitor offering multiple probe options for precise aquaculture regulation. Build the system exactly as you need it.
3x24V DC OUT
Max60W Power
AllSensors
Multifunctional Realize custom functions and regulations with multiple sensor options.
Wireless Data Send data effortlessly to a smartphone or PC across your network.
Cost-Effective Automatically switch supply feeds on or off to save operational costs.
✓Compatible with all Senect Sensors
✓0-10 V & 4-20 mA Output Signals
✓0-24 V DC PWM capability
✓WLAN accessible network expansion
✓Real-time smartphone alerts & alarms
✓For small and large farms
A single parameter, infinite possibilities. The SENECT ONE is not just a standard DO box; it is a multifunctional controller. Switch out the attached probe to utilize this robust system precisely how you need it: whether for regulating pH, balancing salinity, or triggering water pumps effortlessly.
Versatile Applications Built In
Limitless Automation
🔌Universal Compatibility
A single dedicated sensor input that is fully compatible with all available Senect Sensors to meet your farm's needs.
⚙️Smart Regulation
Automatically handle tasks such as refilling water, monitoring pumps, or controlling ozonation systems.
📱Remote Access & Alarms
Monitor your equipment from anywhere. If unfavorable conditions arise, the SENECT ONE pushes warnings directly to your smartphone.
💸Cost Efficiency
Stop continuously running equipment unnecessarily. The controller intelligently activates supplies only when parameters cross their optimal thresholds.
📡Wireless Ecology
Data transmits wirelessly to a router, effectively eliminating the high costs and errors associated with laying data cables.
🌐Scalable for Any Farm
Designed for success in both smaller setups and large-scale aquaculture facilities. Add WLAN repeaters to expand your system's network reach.
Probe Modular Range
Interfacing Sensors
Compatible Probe
Capabilities
Primary Functionality
Water Level
Switching & Refilling
Automate water refilling and track reservoir status
Dissolved Oxygen
Incl. Temperature
Trigger aeration and oxygen injection setups
pH Value
Direct Monitoring
Maintain delicate chemical balances
Redox-Potential
Direct Monitoring
Accurately track and control ozonation levels
Electrical Conductivity
Incl. Temperature
Supervise and regulate system salinity thresholds
Controller supports one probe per active channel. Data transmitted via unified UI.
Design & Hardware
System Specifications
Spec
Detail
Dimensions
191 x 130 x 60 mm
Power Input
100-250 V AC / 50/60 Hz (24 V DC optional)
Electrical Power
Max. 60 W
Sensor Input
Compatible to all Senect Sensors

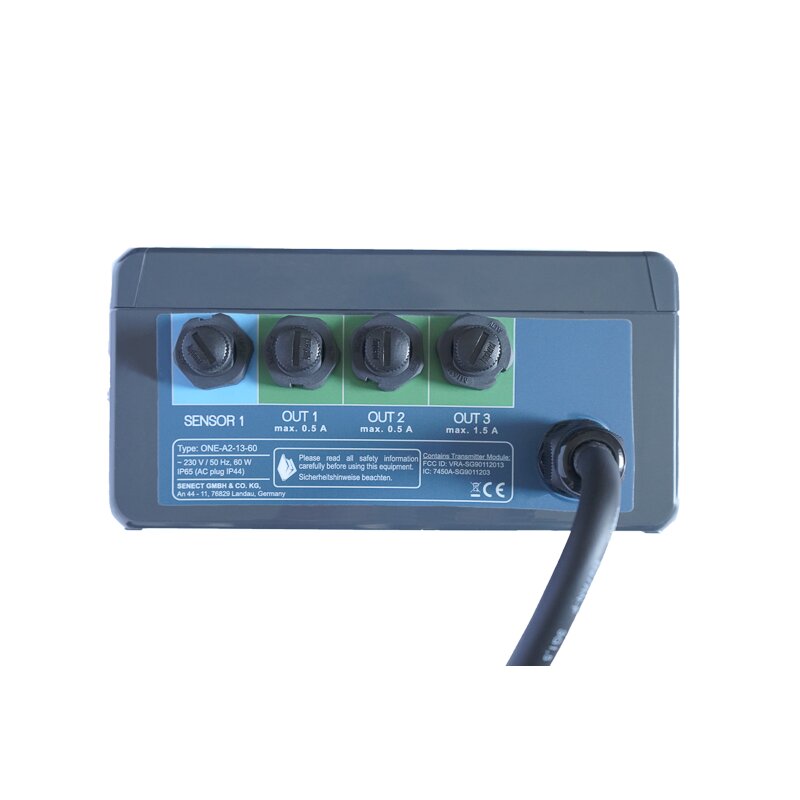

Native Outputs
3 x 24 V DC
Output Signals
0-24 V DC PWM, 0-10 V, 4-20 mA
At a Glance
Hardware Data
1Parameter Monitor
3x24 V DC Outputs
60WMax Power
PWM0-24 V DC
ALLSenect Probes
Expert Guidance
We Get It, There's A Bit Here.
Figuring out the exact parts you need shouldn't be stressful. Give us a call, and we’ll help you get exactly what you need—nothing you don’t—saving you a good amount of stress and guesswork.
Whether controlling salinity, safeguarding with redox tracking, or acting as an intelligent oxygen monitor switch, SENECT ONE adapts seamlessly to the probe you connect.
