Hmahli Lite Series Sumps
Hmahli Lite Series Sumps
Handcrafted in Wollongong, Australia, the Hmahli Lite Series offers premium acrylic filtration solutions designed for aquarists who demand quality without compromise. From the compact Nano to the expansive Large model, the Lite Series combines sleek aesthetics with practical functionality.
The larger models in this range (Medium and Large) come standard with premium features often reserved for flagship lines, including flush-fitting lids and inbuilt LED lighting to illuminate your filtration workspace.
Customisation & Flexibility
Because every setup is unique, Hmahli understands that standard specs don't always fit custom plumbing.
- Need bigger connections? If you are using large pipework, we can adjust the bulkhead sizes.
- Specific placement? If you need connections in a certain spot to match your cabinet, just let us know.
Small changes are easy to make! Contact us prior to ordering to discuss your specific requirements.
Key Features (Range Wide)
- Australian Made: 100% handcrafted in Wollongong.
- Premium Construction: High-quality acrylic fabrication with polished edges.
- Dosing Ready: Integrated 1/4" dosing ports (configuration varies by model).
- Advanced Plumbing: Standard 32mm inputs and outputs.
- Heater & Probe Support: Dedicated mounts in Medium and Large models.
Model Specifications

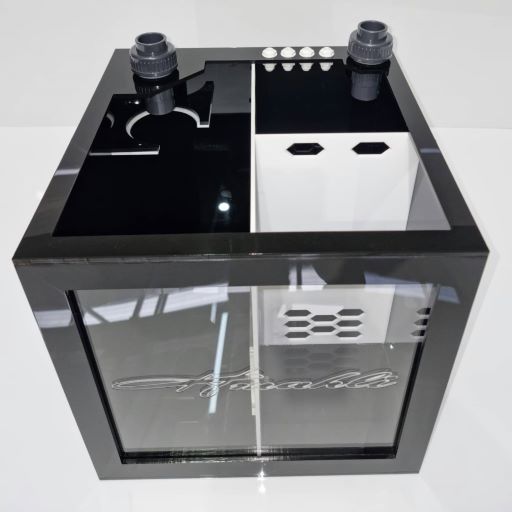

Lite Series Nano
- Dimensions: 400mm (L) x 400mm (W) x 400mm (H)
-
Configuration:
- 4-inch Filter Sock Holder
- Skimmer Chamber
- Media Chamber
- Return Chamber
- 1 x 32mm Input / 1 x 32mm Output
- 4 x 1/4" Dosing Ports
Lite Series Medium
- Dimensions: 900mm (L) x 400mm (W) x 400mm (H)
-
Configuration:
- 7-inch Filter Sock Chamber
- Skimmer Chamber
- Media Chamber
- Return Chamber
- Inclusions: Lids and Inbuilt LED Lighting
- Holders: Probe Holder and Heater Mount
- 2 x 32mm Inputs / 2 x 32mm Outputs
Lite Series Large
- Dimensions: 1150mm (L) x 400mm (W) x 400mm (H)
-
Configuration:
- 7-inch Filter Sock Chamber
- Skimmer Chamber
- Refugium Chamber
- Media Chamber
- Return Chamber
- Inclusions: Lids and Inbuilt LED Lighting
- Holders: Probe Holder and Heater Mount
- 2 x 32mm Inputs / 2 x 32mm Outputs
- 6 x 1/4" Dosing Ports
CRATING CHARGE ADDED AT CHECKOUT
ALL SUMPS BUILT TO ORDER
FEATURES
GUARANTEED PERFORMANCE
BTA uses the Bolton Photosciences Protocol for all our UV dosage calculations, ensuring our performance data is accurate, transparent, and based on real-world effectiveness.
🔥 Engineered for Performance and Practicality
✅ Enhanced 5" Body Design
The larger 5-inch diameter body is the core of our design. It increases UV contact time and allows for higher flow rates, delivering more effective sterilization with less pressure loss compared to standard units. More flow, more power, better results.
Transparent & Honest Performance Data
At BTA, we believe in intellectual honesty. Our specifications are clear, conservative, and designed to give you confidence in your purchase.
📌 UVT = 90% (Calculated for realistic water clarity)
📌 All dose rates are published at End of Lamp Life (EOLL) (Ensuring performance for the entire 16,000-hour lifespan)
📌 Pond volume calculations based on 1 turnover every 4 hours
📌 Aquarium volume based on 1 turnover per hour
POWER AND FLEXIBILITY
💡 High-Performance T5 UV Lamps
Equipped with premium T5 lamps from LightSources, guaranteeing a genuine 16,000-hour lamp life. Available in 25W, 48W, 87W, 120W, 155W, 240W, and 310W models.
🔧 Universal Sockets for Seamless Installation
Forget plumbing headaches. Every unit includes both imperial and metric union fittings, making it compatible with standard Australian PVC pipe and metric systems (like Sanking) right out of the box.
TOP DESIGN
🛠️ Effortless Maintenance & IP65 Gland
Our NEW IP65 access gland and dual-end lamp access mean you can swap bulbs in minutes, not hours. You can also swap the inlet/outlet ends to suit your plumbing layout. No more wrestling with your gear.
🛡️ Zero Leaks, Guaranteed
The triple-seal quartz sleeve system is engineered for a robust, leak-free seal and total peace of mind. This unit is built to be bulletproof.
🔍 Sight Glass for Easy Monitoring
The integrated sight glass gives you a clear, immediate visual confirmation that your sterilizer is operating correctly, taking the guesswork out of maintenance.
💪 Durable PVC Construction
Built to last with high-quality, heavy-duty PVC construction, ensuring extreme durability and a long service life even in the most demanding environments.
DOSE RATES
Understanding UV Dose Rates:
- 30 mJ/cm² (Clarification): This is the industry-standard dose for controlling suspended algae (green water) and maintaining general water clarity in ponds and aquariums.
- 105 mJ/cm² (Sterilization): This is a high-performance dose required for eliminating harmful pathogens, including bacteria and parasites like White Spot (Ichthyophthirius multifiliis). Choose this rating for quarantine systems or tanks with sensitive, high-value livestock.
