Build your custom aquarium, sump, or aquaculture system with the confidence of a professional using Lifegard Aquatics® PVC Plumbing Fittings. This page offers two essential components for creating secure, leak-proof, and safe water management systems: the Heavy-Duty Bulkhead and the Slip-Fit Suction Screen.
Engineered from high-impact resistant, jet-black PVC, these fittings provide maximum durability and a discreet, professional finish for both freshwater and saltwater applications.

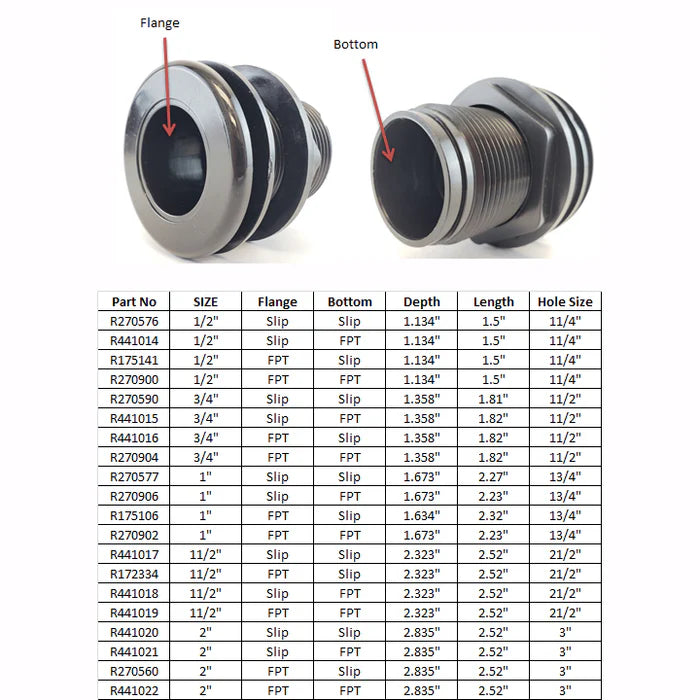

Lifegard Aquatics® Heavy-Duty PVC Bulkhead (Slip x Slip)
The Lifegard Bulkhead is the foundation for reliable plumbing. It creates a secure, leak-proof seal when passing pipe through glass, acrylic, or other materials.
Key Features:
Leak-Proof Seal: Includes a high-quality rubber gasket for a watertight connection.
Slip x Slip Design: Allows for easy solvent-welding of standard PVC pipes on both sides.
Versatile Use: Ideal for creating overflows, drains, and closed-loop returns.
Glass Compatible: Can be installed in all non-tempered glass LIFEGARD® AQUATICS aquariums.
Installation Note: Hand-tighten only. We recommend professional drilling services for glass tanks.
The Lifegard Suction Screen is your first line of defense. It prevents debris, invertebrates, and small fish from entering your plumbing, protecting your pump from clogs and your aquatic life from harm.
Key Features:
Equipment & Livestock Protection: Slotted design blocks debris while maintaining high flow rates.
Simple Slip-Fit Installation: Press-fits securely inside a standard PVC slip fitting (like a coupler or the slip side of a bulkhead).
Easy Maintenance: Quickly removable for cleaning without tools.
Crucial Installation Note: This screen fits inside a slip fitting, not over a pipe. A slip coupling is required to connect it to an existing pipe.
Please use the table below to identify the correct part number and required hole size for your chosen fitting.
|
Product Type
|
Part Number (SKU)
|
Nominal Size (Imperial)
|
Nominal Size (Metric)
|
Required Hole Size (for Bulkheads)
|
|---|---|---|---|---|
|
Bulkhead
|
R270576
|
1/2"
|
15 mm
|
32 mm
|
|
Suction Screen
|
R270565
|
1/2"
|
15 mm
|
N/A
|
|
Bulkhead
|
R270590
|
3/4"
|
20 mm
|
39 mm
|
|
Suction Screen
|
R270599
|
3/4"
|
20 mm
|
N/A
|
|
Bulkhead
|
R270577
|
1"
|
25 mm
|
45 mm
|
|
Suction Screen
|
R270570
|
1"
|
25 mm
|
N/A
|
|
Bulkhead
|
R441017
|
1 1/2"
|
40 mm
|
64 mm
|
|
Suction Screen
|
R270581
|
1 1/2"
|
40 mm
|
N/A
|
|
Bulkhead
|
R441020
|
2"
|
50 mm
|
77 mm
|
|
Suction Screen
|
R270582
|
2"
|
50 mm
|
N/A
|
