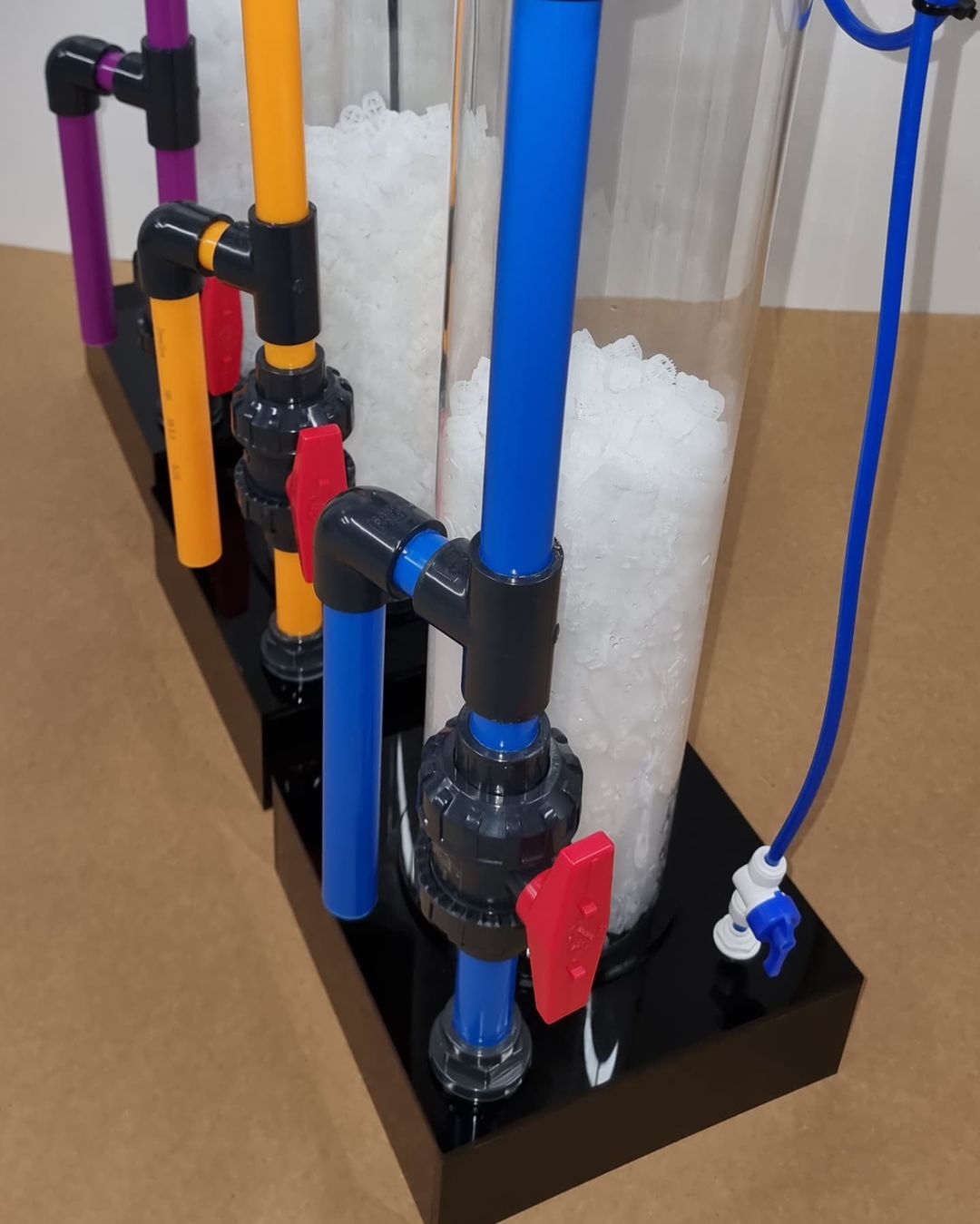

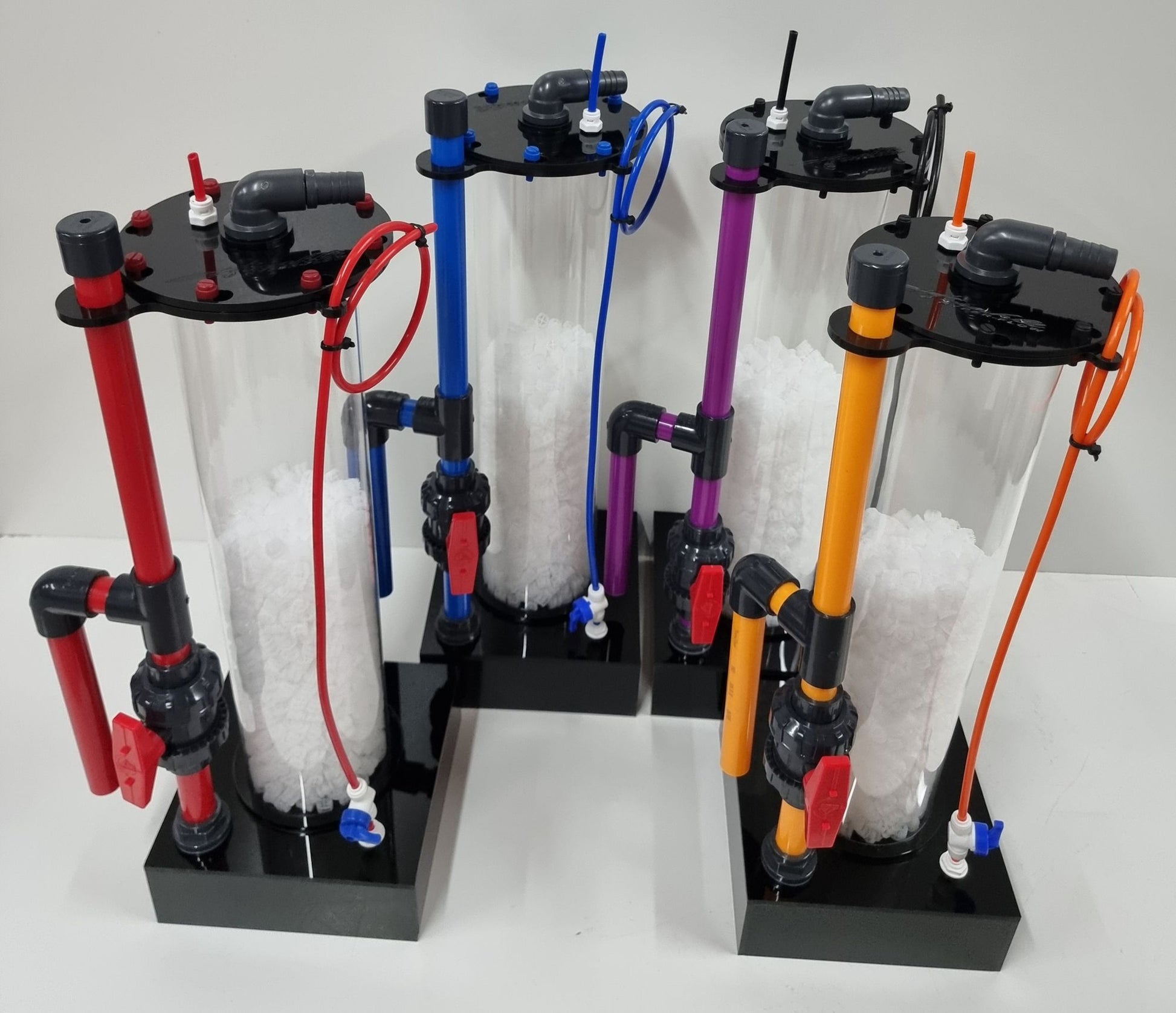

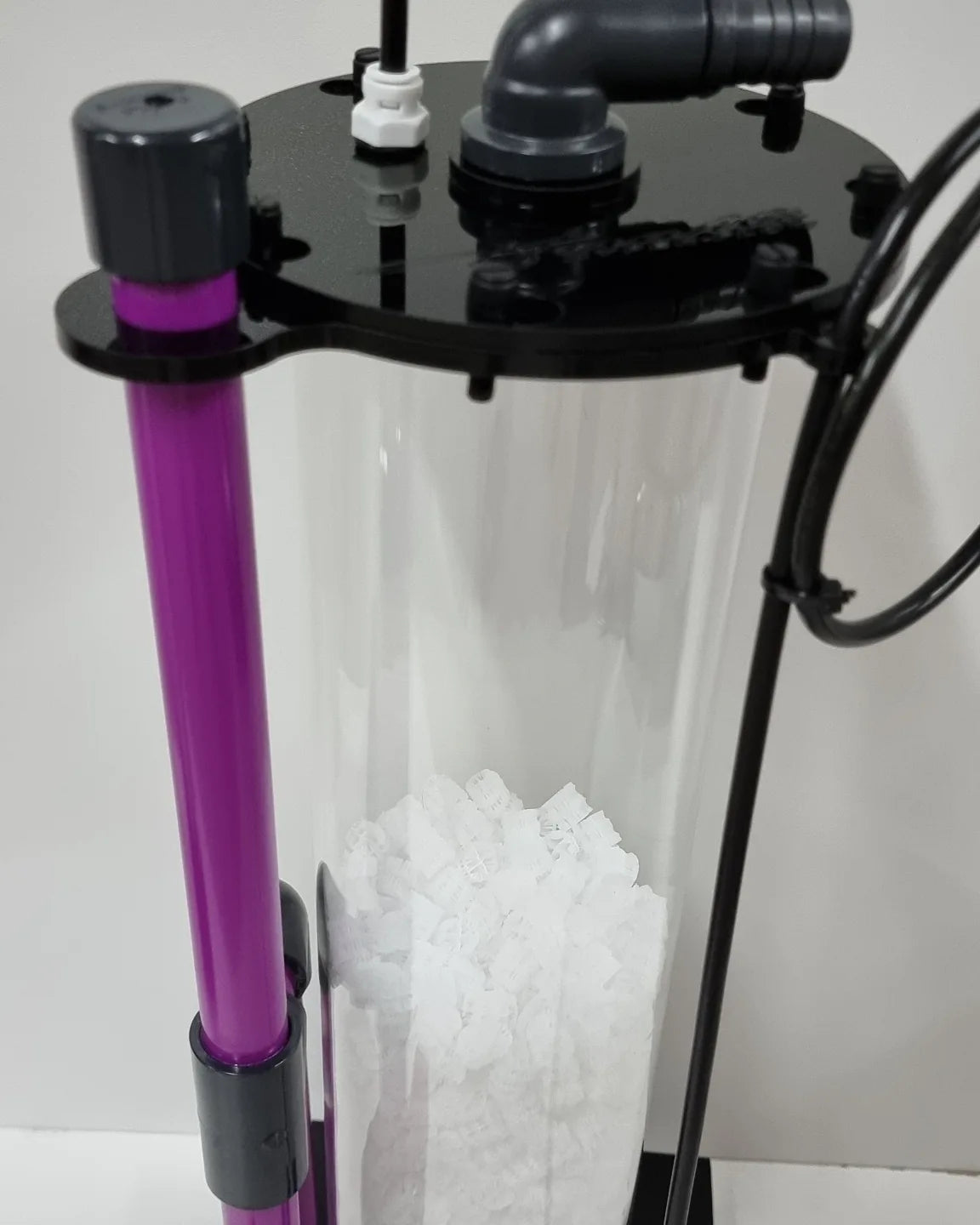

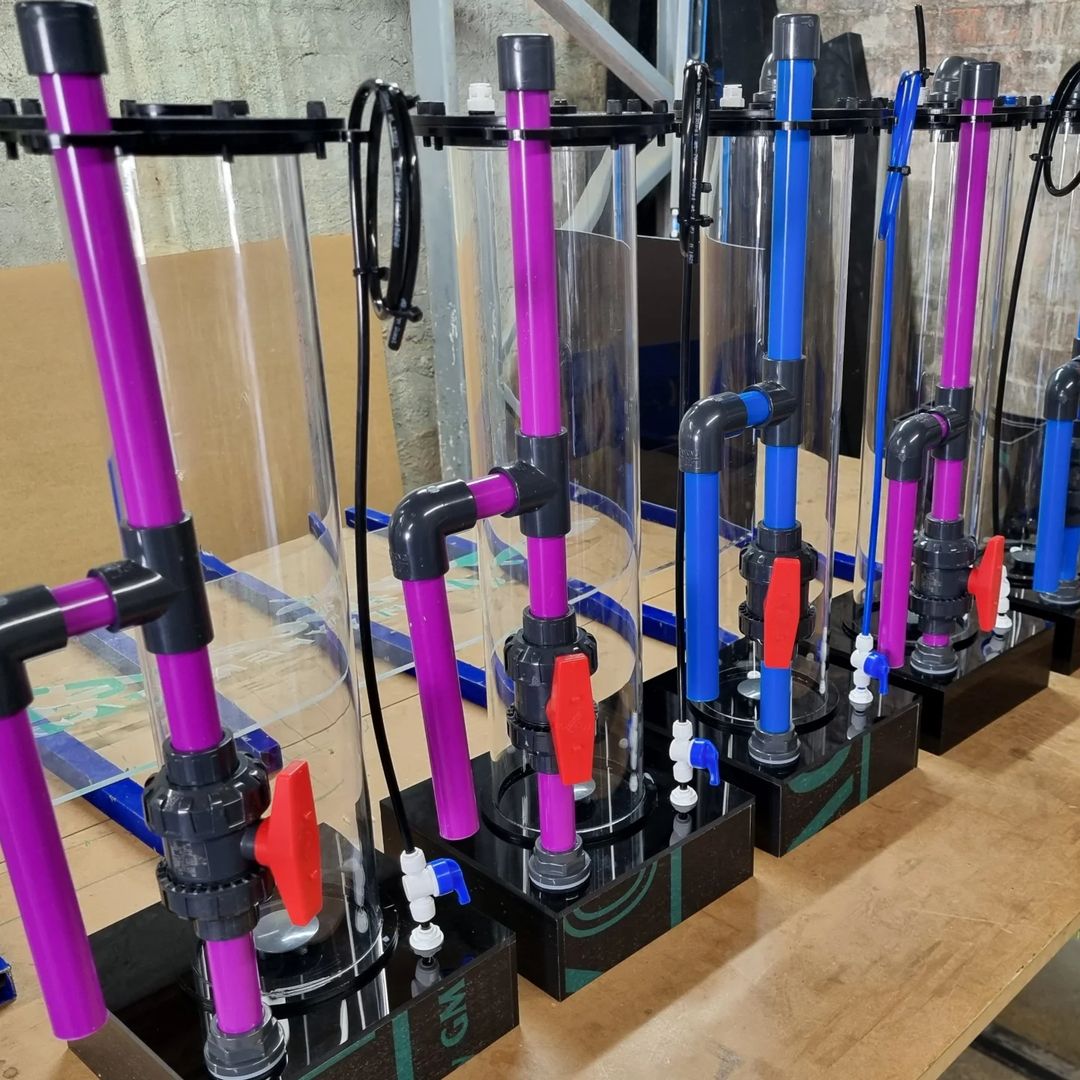

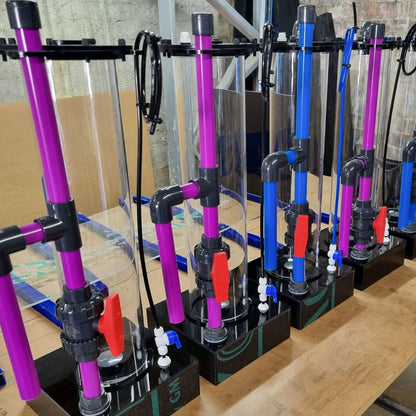

Hmahli MBBR Bioreactor 5L

Commercial-grade moving-bed biofiltration for marine and freshwater aquaria

A true collaboration between Hmahli and Biotech Aquatica (BTA), this 5L Moving Bed Bioreactor combines aquarium expertise with precision sizing to deliver quiet, high‑performance aerobic nitrification and self‑cleaning media action. Use it for reef, fish‑only and planted systems to reduce ammonia and nitrite, improve clarity, and generate beneficial bacterioplankton for filter‑feeders.

Designed for K+ (Kaldnes‑type) media (included), the reactor is tuned for predictable biofiltration using a feed‑loading basis of 5 g of 50% protein feed per litre of media. Start at the recommended media level and scale up to match your tank’s bioload.

Key specs

• Media type: Genuine K+ — included, pre‑measured for selected fill
• Recommended media fill: 1.5–2.5 L (30%–50% of reactor)
• Feed capacity (5 g feed / L media): 1.5 L → 7.5 g/day; 2.5 L → 12.5 g/day
• Approx. protected biofilm surface (K+ = 1025 m²/m³): 1.5 L → ~1.54 m²; 2.5 L → ~2.56 m²
• Water flow: 500–1,000 L/h
• Air Flow: 1–2 LPM @ ~500 mm water depth
• Reactor capacity: 5 L
• Dimensions: 120 mm (diameter) × 500 mm (height)

What’s included

• Hmahli 5L Moving Bed Bioreactor
• K+ media (1.5L)
• O‑rings and basic fittings

Quick installation tips

• Start with 1.5 L media, monitor ammonia/nitrite, and increase to 2.5 L if needed.
• Position before the return pump or near the skimmer/feed zone for best polishing.
• Match hydraulic flow and airflow to the recommended ranges to maintain stable fluidization without media loss.
