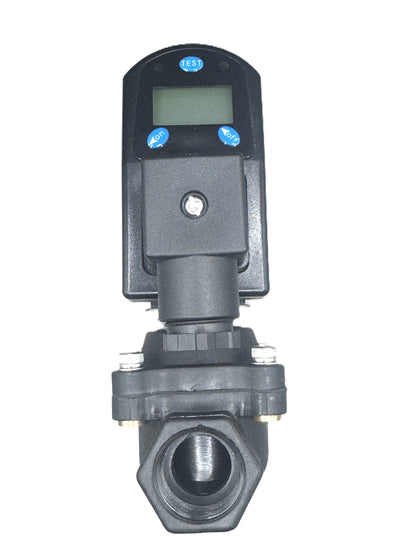

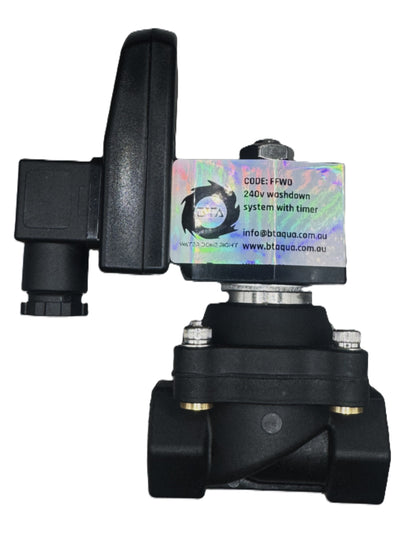

Digital Timed Solenoid System- AWC and AWD 240V

Tired of the daily chore of manual maintenance? Whether it is cleaning your protein skimmer neck or performing consistent water changes, manual intervention is time-consuming and prone to inconsistency. Build-up in your skimmer reduces efficiency and impacts water quality, while irregular water changes can lead to unstable parameters.

The Biotech Aquatica Digital Timed Solenoid System is your professional, automated solution for both Auto Water Change (AWC) and Foam Fractionator Washdown (FFWD). Unlike 12V or battery-powered gadgets, this is a robust 240V unit engineered for industrial reliability. This is the hardware that keeps your system stable and your skimmer performing at its peak.

How It Works

The principle is simple but highly effective. The unit is installed into the water line that feeds your skimmer's washdown mechanism or your automated water change supply. Using the integrated digital timer, you take full control of the cycle.

1. Program Your Cycle: You set two key parameters: the ON-Time (how long the water flows/sprays) and the OFF-Time (the interval between each event).
2. Automated Activation: At the end of your programmed OFF-Time interval, the timer automatically energizes the industrial-grade solenoid valve, causing it to open.
3. Powerful Action: For washdowns, a powerful spray of water is released into the skimmer neck to wash away organic film. For auto water changes, the valve opens to allow a precise volume of new water into the system.
4. Reset and Wait: The solenoid closes, and the timer begins counting down the OFF-Time until the next cycle.

This 'set and forget' process ensures the path for foam is always clear or that your water is refreshed consistently without you lifting a finger.

Unmatched Programmability & Control

Total control is at your fingertips. The high-precision digital timer offers an exceptionally wide range of adjustment to perfectly match your system's bio-load or water change requirements.

• ON-Time (Duration): Adjustable from 0.01 seconds to 99 hours.
• OFF-Time (Interval): Adjustable from 0.01 seconds to 99 hours.

To get you started immediately, the unit comes pre-programmed from the factory with a common setting: a 3-second burst every 30 minutes.

Key Features & Benefits:

• Dual-Purpose Automation: One robust unit capable of managing automated cleaning or scheduled water replenishment.
• Robust & Reliable: Powered by 240V mains, it provides consistent, powerful operation you can depend on. No batteries to fail or 12V systems to underperform.
• Ensures Peak Performance: Maintains a clean skimmer neck for maximum waste export and ensures stable water chemistry through regular, automated water changes.
• Simple Upgrade: The pre-assembled unit is easily plumbed into your line using standard 3/4" BSP threaded fittings. Suitable for both freshwater and saltwater.

Recommended Upgrade: Complete Your System

While you are thinking of upgrading, why not consider our Spiral Spray Nozzles? They are the perfect partner for your new system. With no moving parts, they are highly clog-resistant and deliver an excellent spray pattern for both saltwater and freshwater washdowns.

Technical Specifications:

What's in the Box:

• 1 x Biotech Aquatica Pre-Assembled Digital Timer & Solenoid Unit
• 1 x Digital Timer Programming & Installation Guide

Note: Unit requires hard-wiring to a power source by a qualified electrician.
