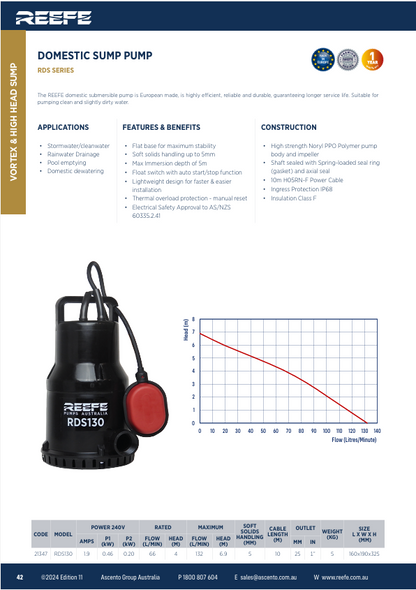

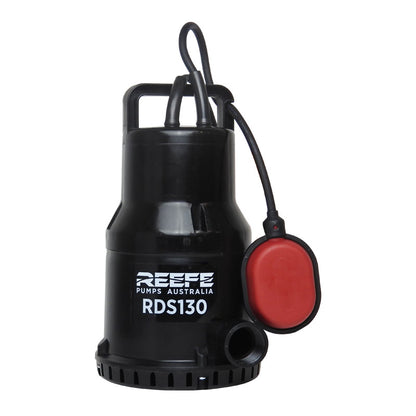

The REEFE RDS Series Domestic Submersible Pump is a high-quality, European-made solution designed for efficient, reliable, and durable performance. Ideal for pumping clean and slightly dirty water, this pump guarantees a longer service life, making it a dependable choice for various domestic drainage needs.
Key Features & Benefits:
Stable & Compact: Features a flat base for maximum stability and a lightweight design for faster, easier installation.
Solids Handling: Capable of handling soft solids up to 5mm.
Deep Immersion: Maximum immersion depth of 5 meters.
Automatic Operation: Equipped with a float switch for convenient auto start/stop functionality.
Thermal Protection: Includes manual reset thermal overload protection to prevent damage.
Certified Safety: Electrical Safety Approval to AS/NZS 60335.2.41.
Ideal Applications:
Stormwater/Cleanwater Drainage
Rainwater Drainage
Pool Emptying
General Domestic Dewatering
Robust Construction:
Body & Impeller: High-strength Noryl PPO Polymer for durability.
Shaft Seal: Features a shaft sealed with a spring-loaded seal ring (gasket) and axial seal for leak prevention.
Power Cable: Comes with a 10m H05RN-F Power Cable for flexible placement.
Ingress Protection: IP68 (Dust tight and protected against prolonged immersion).
Insulation Class: F
Technical Specifications:
Attribute
RDS130
Product Code
21347
Power Supply
240V
Amps
1.9 A
Power (P1)
0.46 kW
Power (P2)
0.20 kW
Rated Flow
66 L/min @ 4m Head
Maximum Flow
132 L/min @ 6.9m Head
Soft Solids Handling
5 mm
Cable Length
10 m
Outlet Size
25 mm (1")
Weight
5 kg
Dimensions (L x W x H)
160 x 190 x 325 mm
Warranty: Covered by a 1-year manufacturer's warranty.
